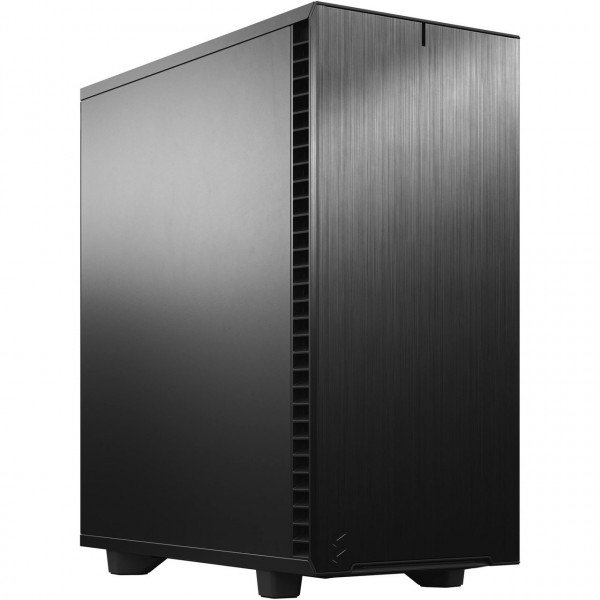

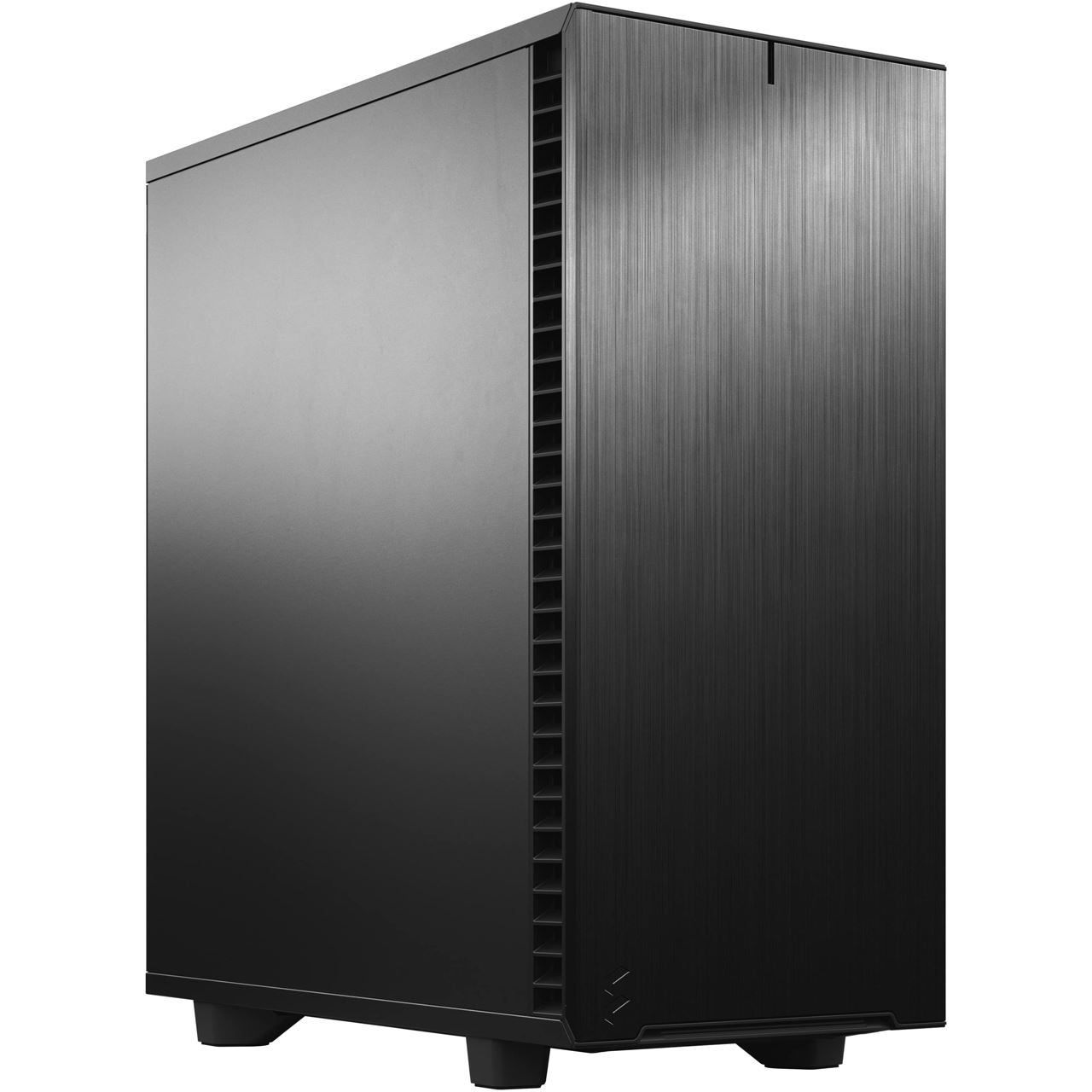

Gehäuse FRACTAL DESIGN DEFINE 7 Compact (Black-Solid)

  • Fractal Design
    328991
  • Lagernd
    12980
    inkl. MwSt.
    zzgl. Versandkosten

    Lagernd


    328991
    Fractal Design
    FD-C-DEF7C-01
    7340172702160



    Define 7 Compact

    The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

    • • Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
    • • Fits GPUs up to 360 mm with a 240 mm radiator in the top
    • • Top panel effortlessly swaps from solid steel to filtered ventilation

    Choose type



    Introducing the Define 7 Compact



    Re-defining efficiency

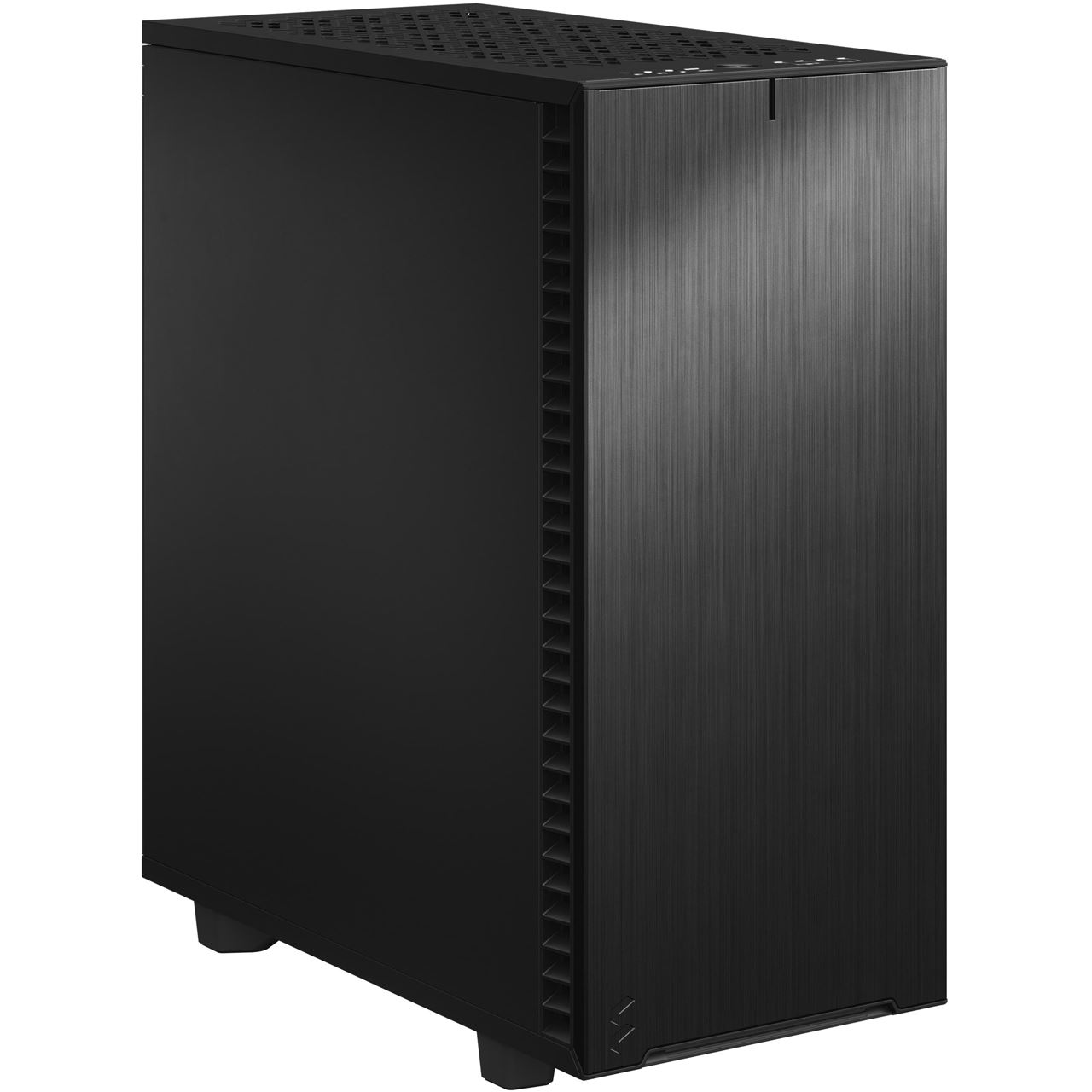

    A cleaner look

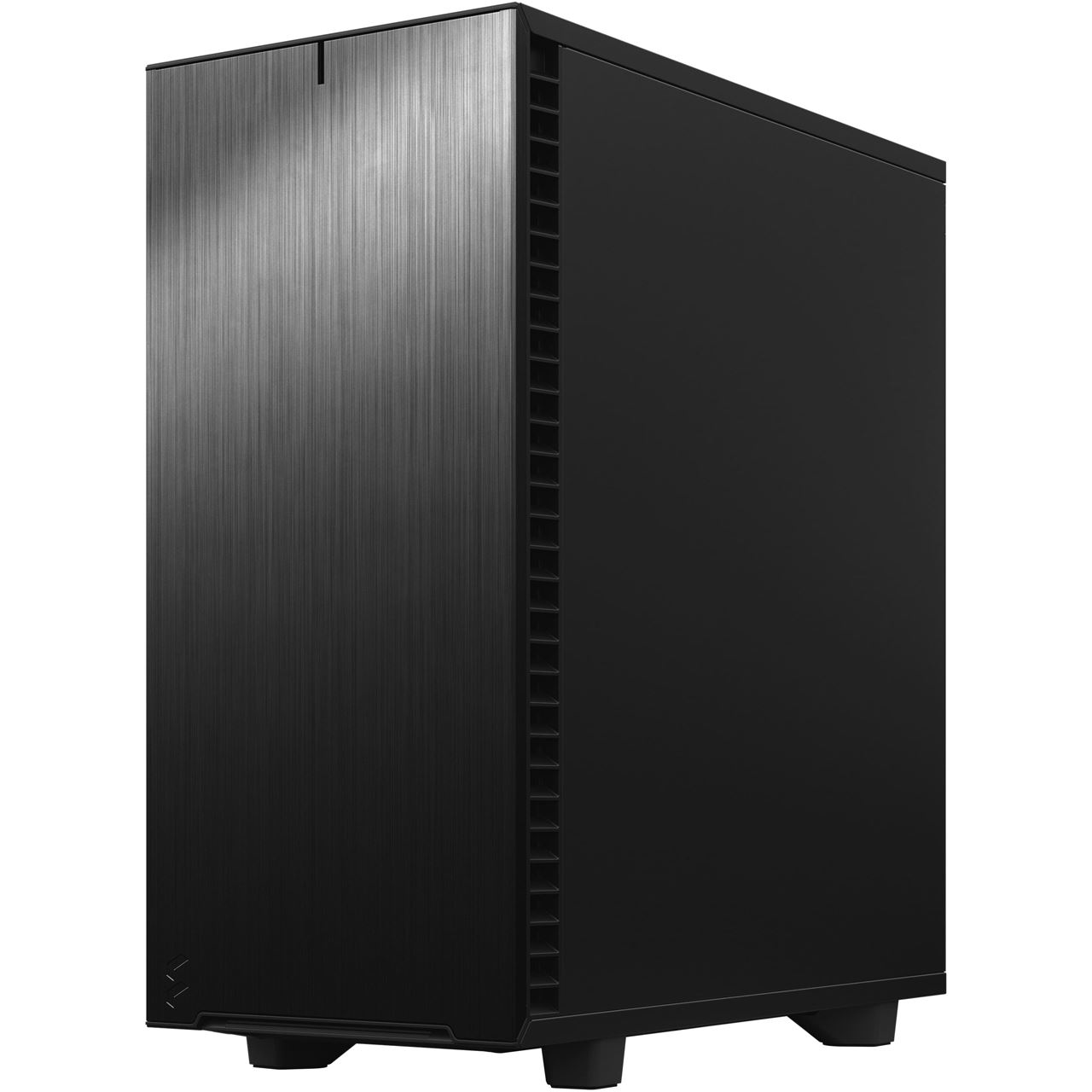

    Brushed aluminum front and interchangeable side panels give a very clean look

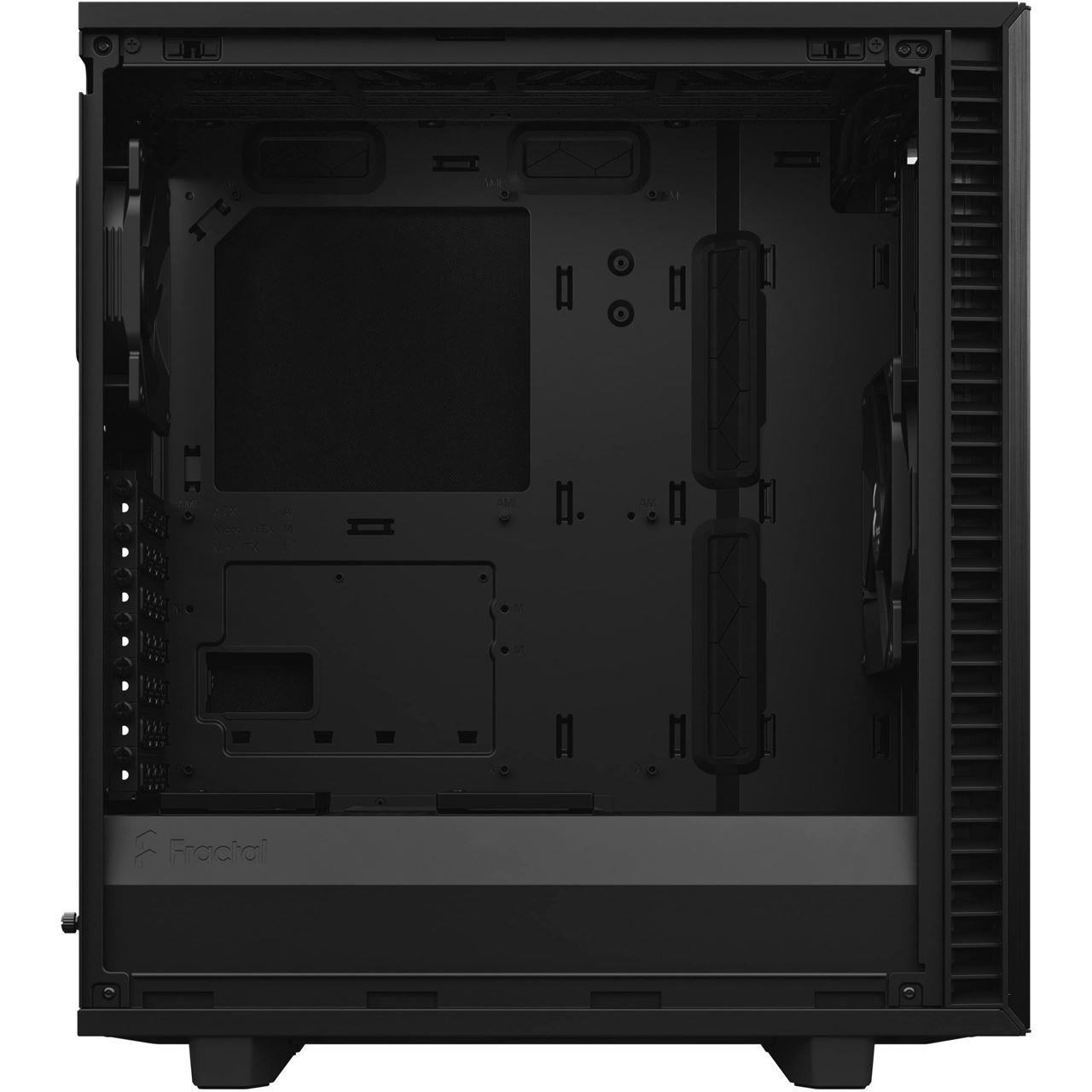

    Compact yet spacious

    The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

    Exceptionally silent

    • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation

    • Brushed aluminum front and top-latching side panels offer a clean sophisticated look

    • Top panel effortlessly swaps from solid steel to filtered ventilation

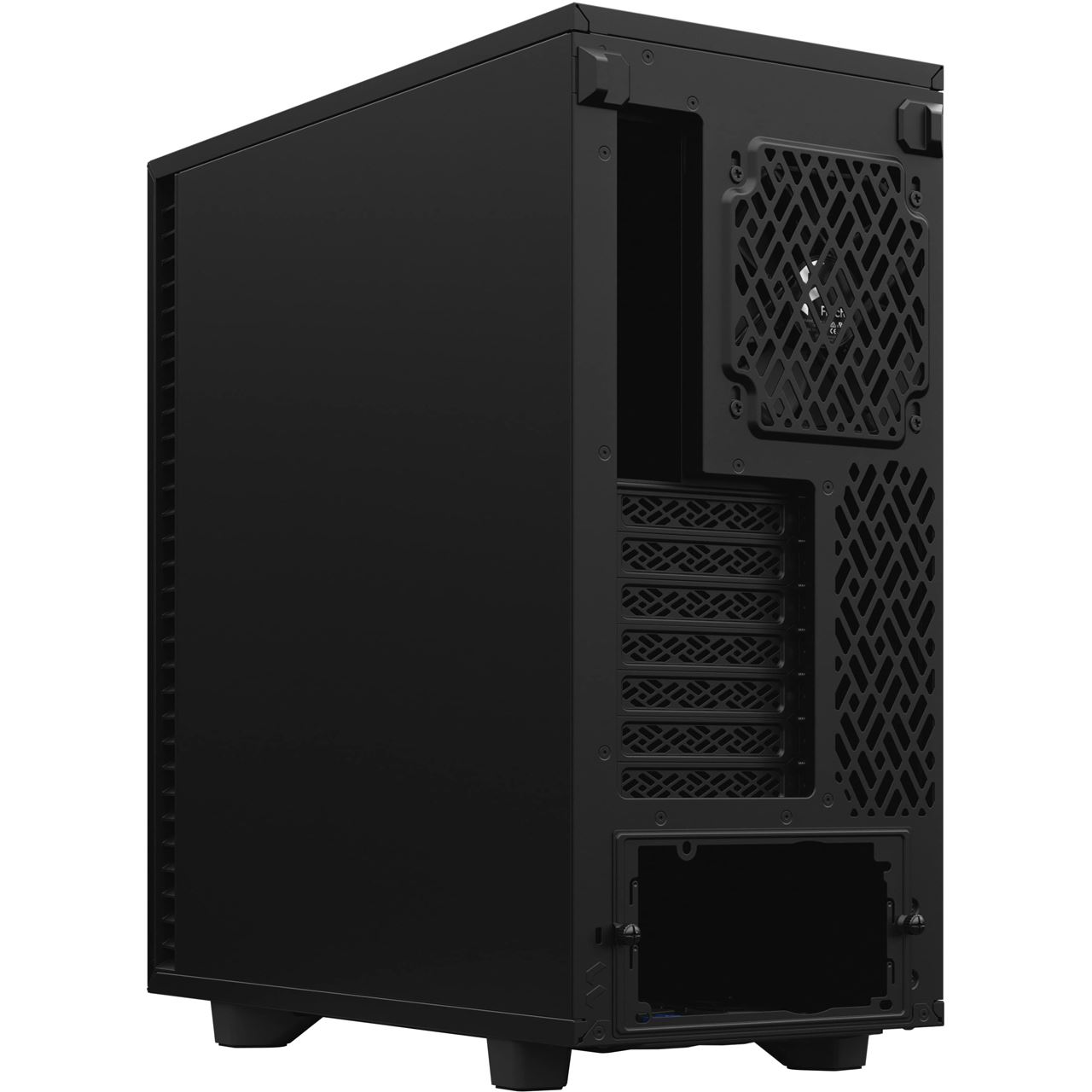

    Substantial cooling

    • Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm

    • 1x 120 mm and 1x 140 mm Dynamic X2 fans included

    • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

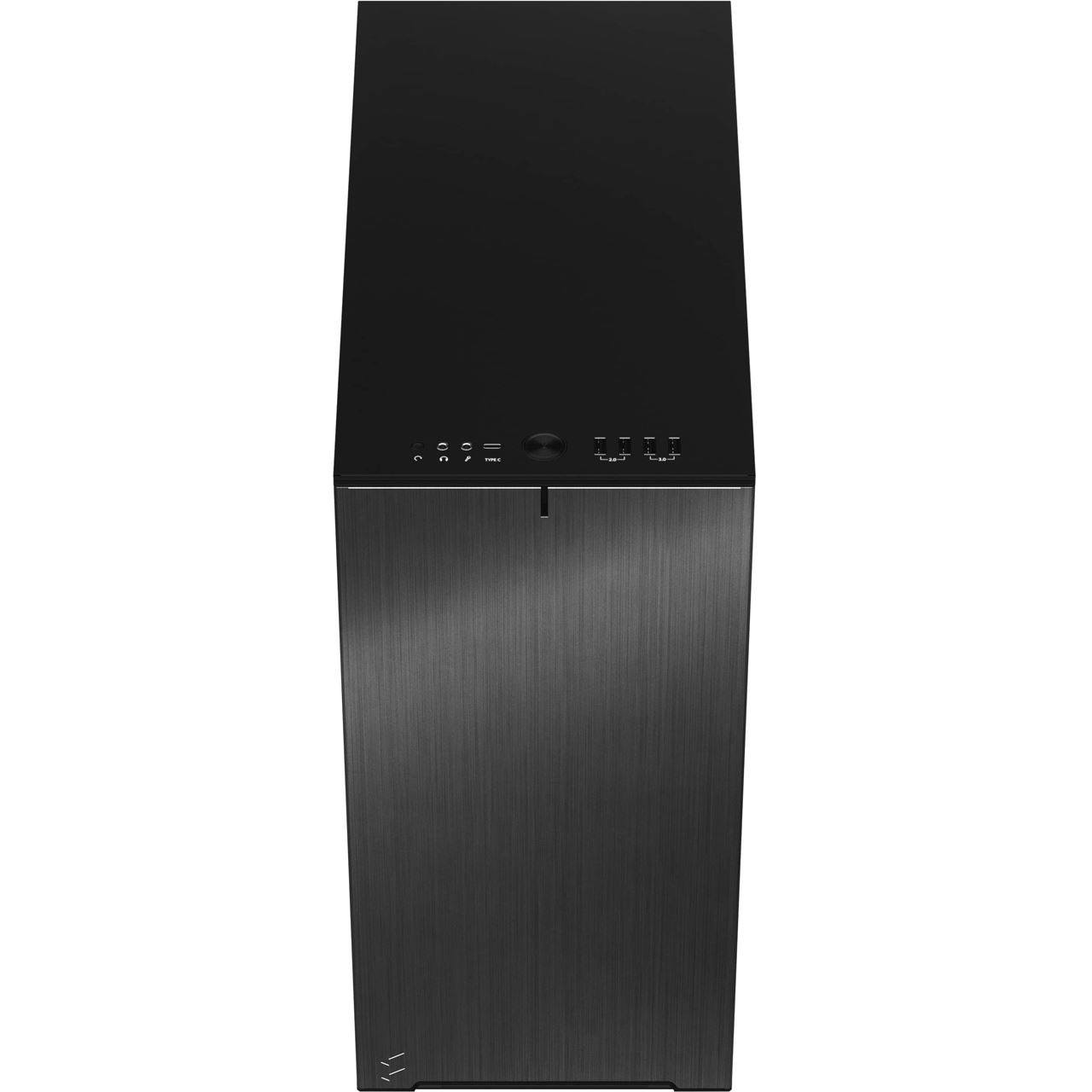

    Robust Front I/O

    Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

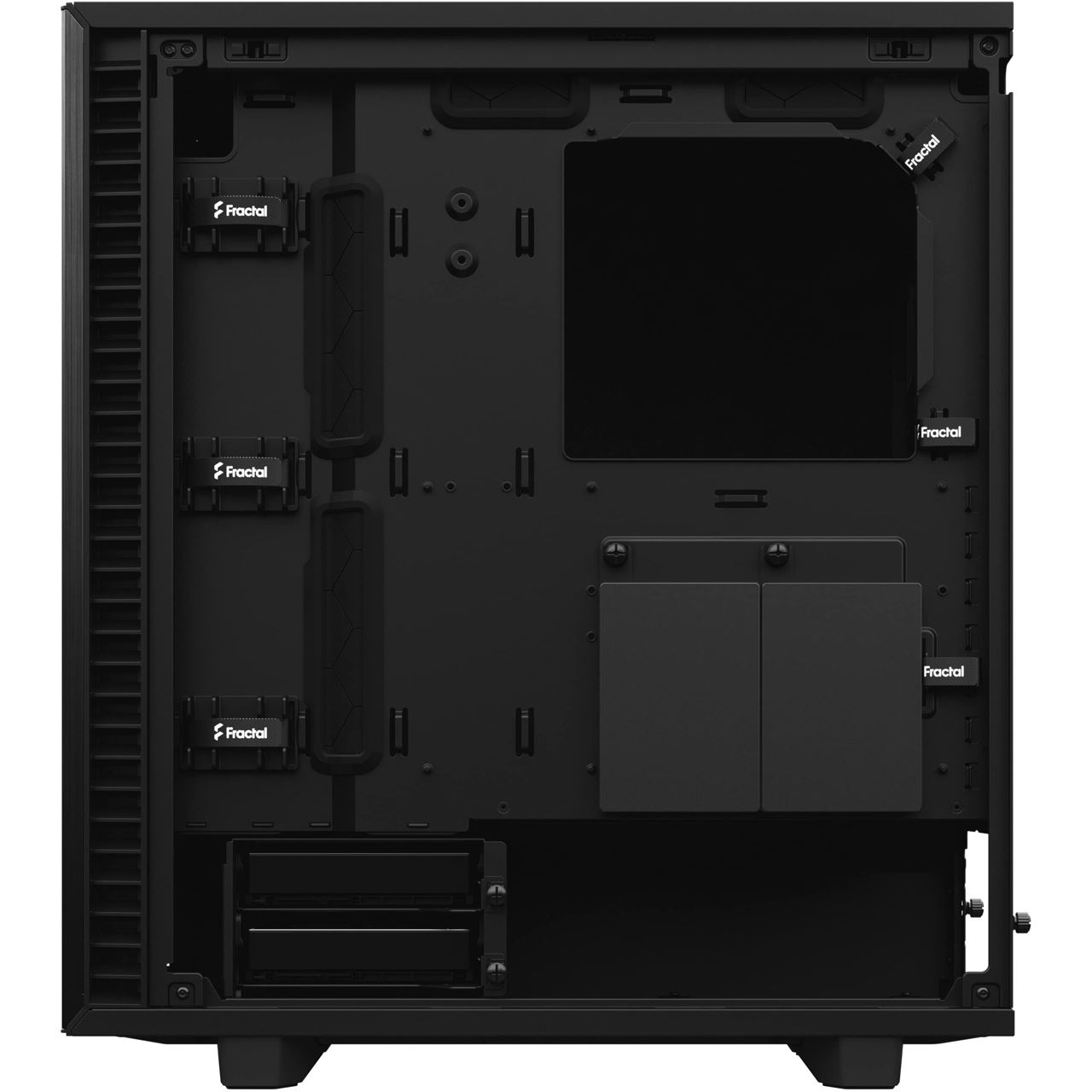

    Concealed storage

    You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate

    More in store

    A pair of SSDs are easily mounted straight on the PSU shroud

    Front, top and base

    Easy-to-clean high airflow nylon filters

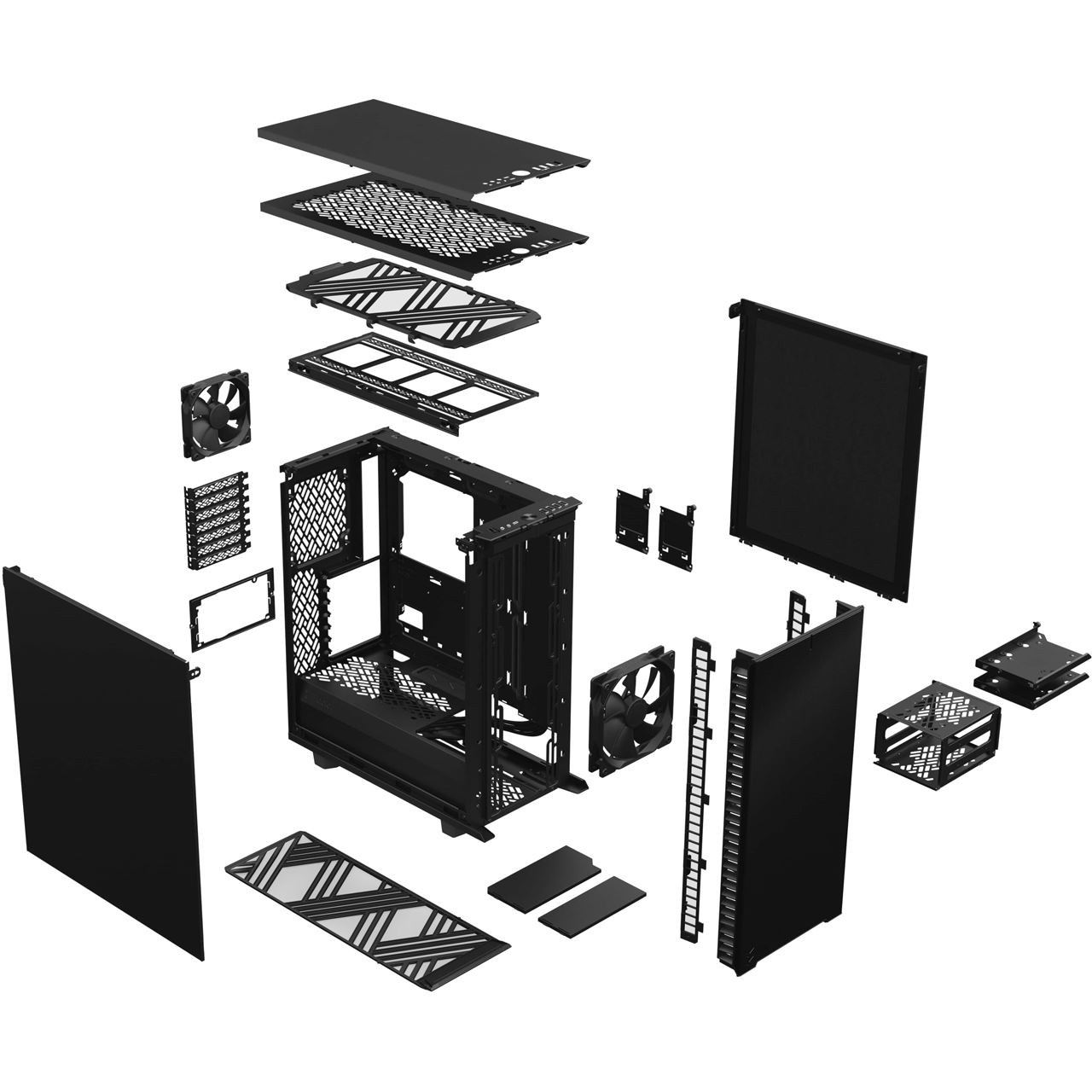

    Open access

    Remove the entire top to build and route with zero hindrance




    Bitte beachten Sie: Die Herstellergarantie des Artikels umfasst grundsätzlich alle Mängel, die innerhalb der Garantiezeit entstehen und nicht von Ihnen verursacht wurden. Die Garantieleistung des Herstellers erstreckt sich räumlich mindestens auf das Land der Bundesrepublik Deutschland. Bitte wenden Sie sich im Garantiefall an den Garantiegeber. Die Kontaktdaten für den entsprechenden Garantieanspruch entnehmen Sie bitte unserer Herstellerübersicht. Gesetzliche Gewährleistungsrechte werden durch eine zusätzliche Herstellergarantie nicht eingeschränkt.

    Technische Details

    Gehäuse Typ Midi-Tower
    max. Mainboardformfaktor ATX
    kompatible Mainboardformate ATX, Micro-ATX, Mini-ITX
    Farbe Schwarz
    Hauptfarbe Schwarz
    Breite (exakt) 210
    Höhe (exakt) 474
    Tiefe (exakt) 427
    Breite 200 - 300 mm
    Höhe 400 - 500 mm
    Tiefe 400 - 500 mm
    Gewicht (exakt) 9,2
    Gewicht 8 - 9,9 kg
    Material Kunststoff, Aluminium, Stahl
    max. CPU Kühler Höhe (exakt) 169 mm
    max. Grafikkarten Länge (exakt) 360 mm
    max. Netzteil Länge (exakt) 165 mm, 200 mm
    max. CPU Kühler Höhe 160 - 179 mm
    max. Grafikkarten Länge 300 - 399 mm
    max. Netzteil Länge 140 - 199 mm, 200 - 249 mm
    Seitenteil geschlossen
    Frontklappe nein
    Position I/O Deckel
    USB 2.0 2x
    USB 3.0 2x
    USB 3.1 (Typ C) 1x
    Audio Aus- / Eingänge 1x Ausgang (3,5 mm Klinke, TRS), 1x Eingang (3,5 mm Klinke, TRS)
    Audio-Ausgang 1x
    Audio-Eingang 1x
    Cardreader nein
    Lüftersteuerung nein
    LCD/TFT Display nein
    intern 2,5 Zoll 2x
    intern 2,5 / 3,5 Zoll 2x
    Hot-Swap nein
    PCI-Slots 7
    Mainboardschlitten nein
    Kabelmanagement Gehäuse ja
    Netzteil Format ATX
    Netzteil Position Hinten Unten
    Lüfter vorinstalliert 1x 120mm, 1x 140mm
    Lüfter 120mm 7
    Lüfter 140mm 4
    Lüfterfarbe Schwarz
    Radiator Mounting 2x Single (120mm), 1x Dual (240mm), 1x Triple (360mm)
    Filter ja
    Dämmung ja
    Beleuchtung nein
    Fernbedienung nein
    Schlauchdurchführung nein
    Serie Define
    Transport System nein
