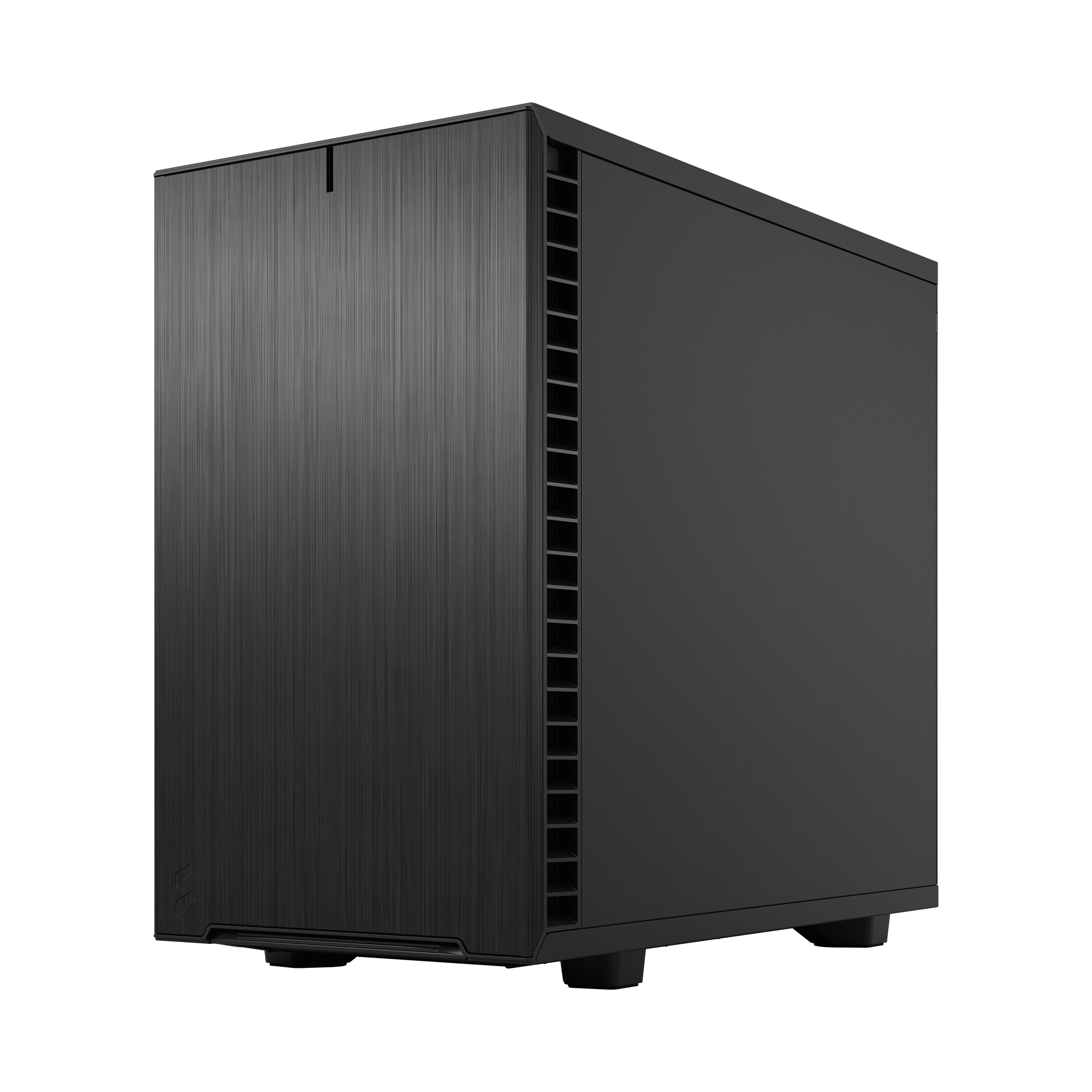

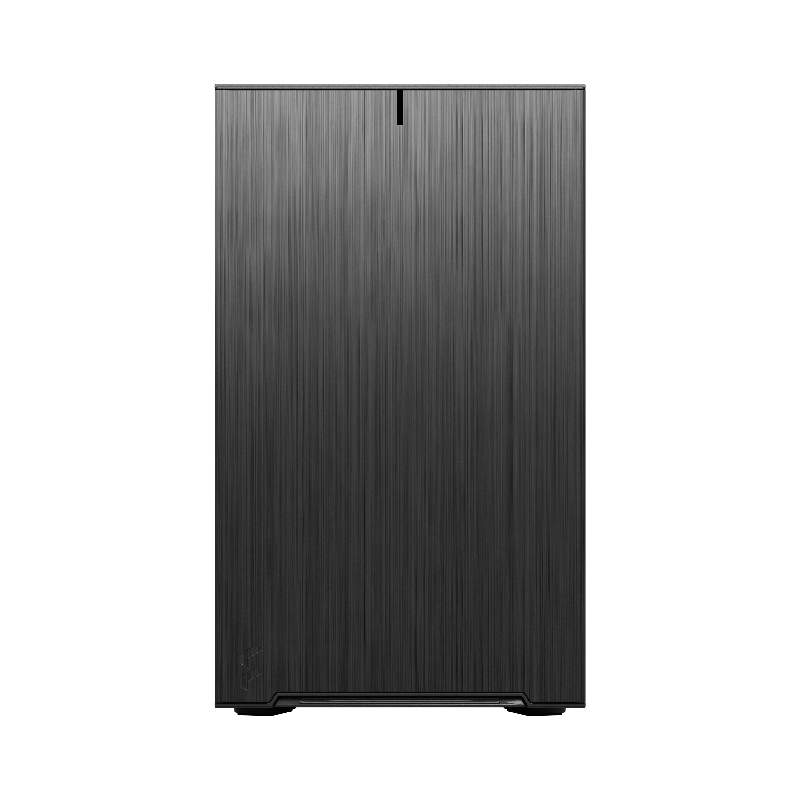

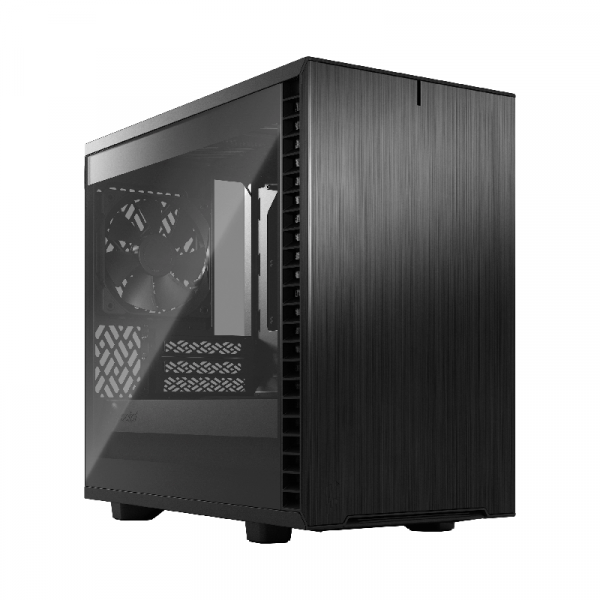

Gehäuse FRACTAL DESIGN DEFINE 7 Nano (Black-TG-Light-Tint)

  • Fractal Design
    404447
  • Lagernd
    9980
    inkl. MwSt.
    zzgl. Versandkosten

    Lagernd


    404447
    Fractal Design
    FD-C-DEF7N-02
    7340172702849

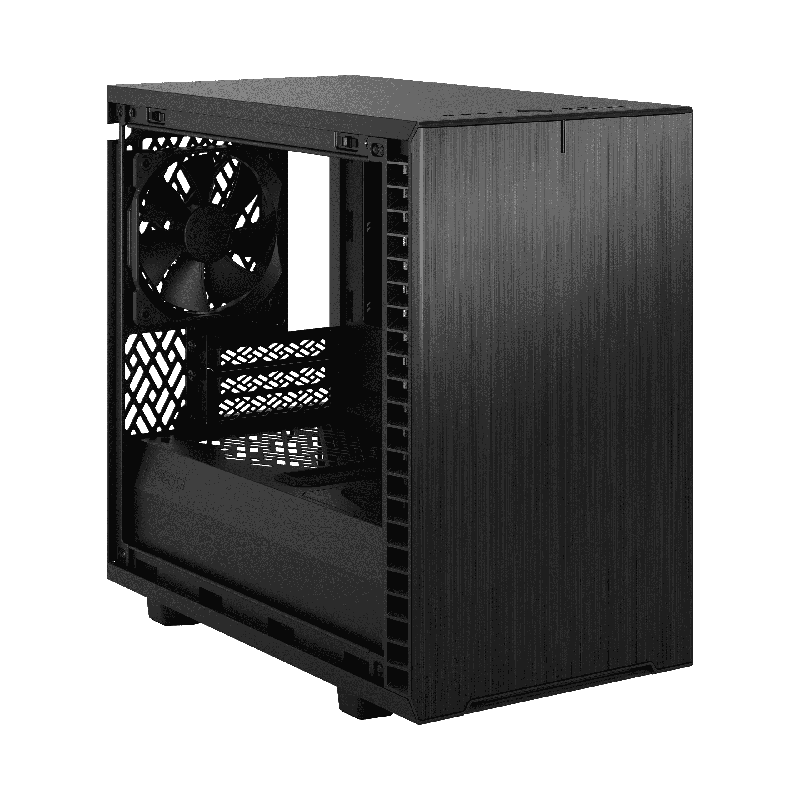

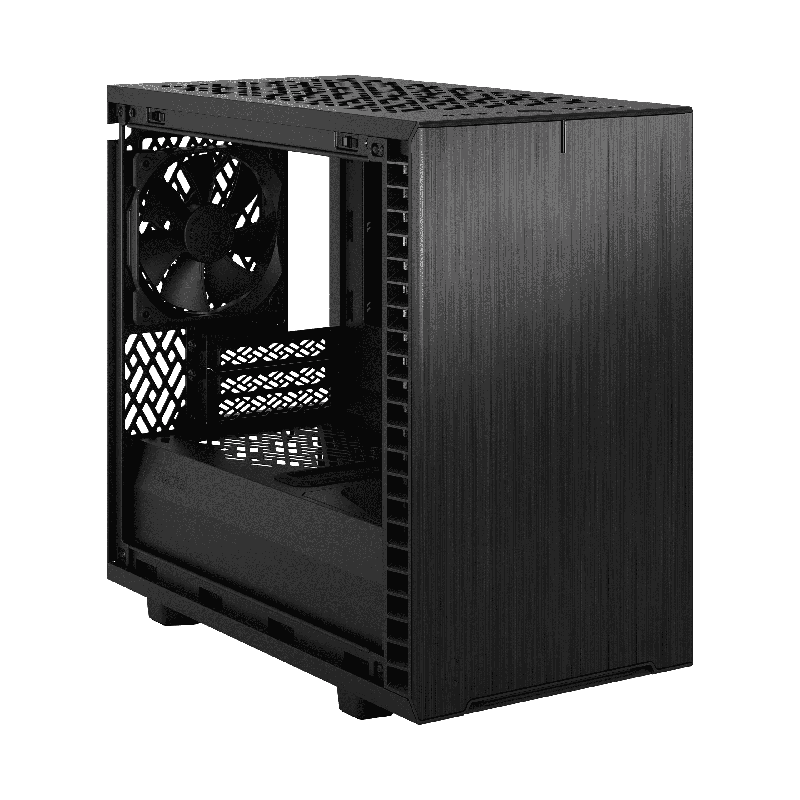

    The Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimized form factor. The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and the option to house a GPU up to 306 mm, making it highly versatile.



    •  Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard
    •  Room for GPU up to 306 mm with a 25 mm front fan
    •  Flexible storage option supporting one 3.5” drive and three 2.5’’ drives

    Bitte beachten Sie: Die Herstellergarantie des Artikels umfasst grundsätzlich alle Mängel, die innerhalb der Garantiezeit entstehen und nicht von Ihnen verursacht wurden. Die Garantieleistung des Herstellers erstreckt sich räumlich mindestens auf das Land der Bundesrepublik Deutschland. Bitte wenden Sie sich im Garantiefall an den Garantiegeber. Die Kontaktdaten für den entsprechenden Garantieanspruch entnehmen Sie bitte unserer Herstellerübersicht. Gesetzliche Gewährleistungsrechte werden durch eine zusätzliche Herstellergarantie nicht eingeschränkt.
    Spezifikationen
    3.5"/2.5" drive mounts
    1 (included)
    2.5" drive mounts
    3 (2 included)
    Expansion slots
    2 + 0
    Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
    Total fan mounts
    6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans)
    Front fan
    2x 120/140 mm (1x Dynamic X2 GP-14 included)
    Top fan
    2x 120 or 1x 140 slim fan (max 15 mm)
    Rear fan
    1x 120 mm (1x Dynamic X2 GP-12 included)
    Bottom fan
    1x 120 mm (requires removal of HDD tray)
    Dust filters
    Top, Front, Bottom and PSU
    Cable routing space
    15-25 mm
    Cable routing grommets
    Yes
    Fixed cable ties
    Yes
    Tool-less push-to-lock
    Both side panels
    Captive thumbscrews
    SSD and PSU brackets

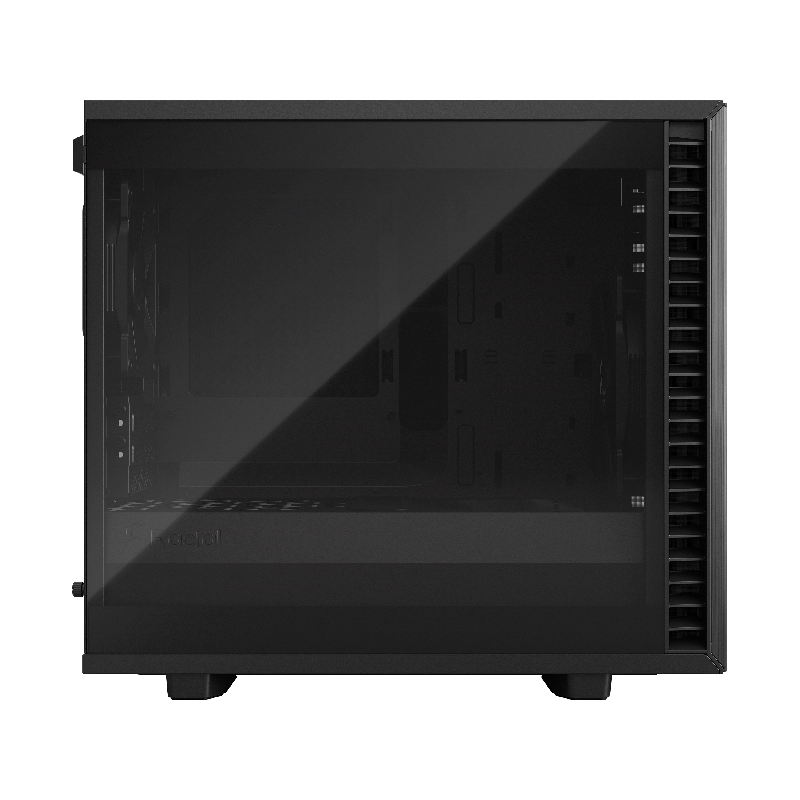

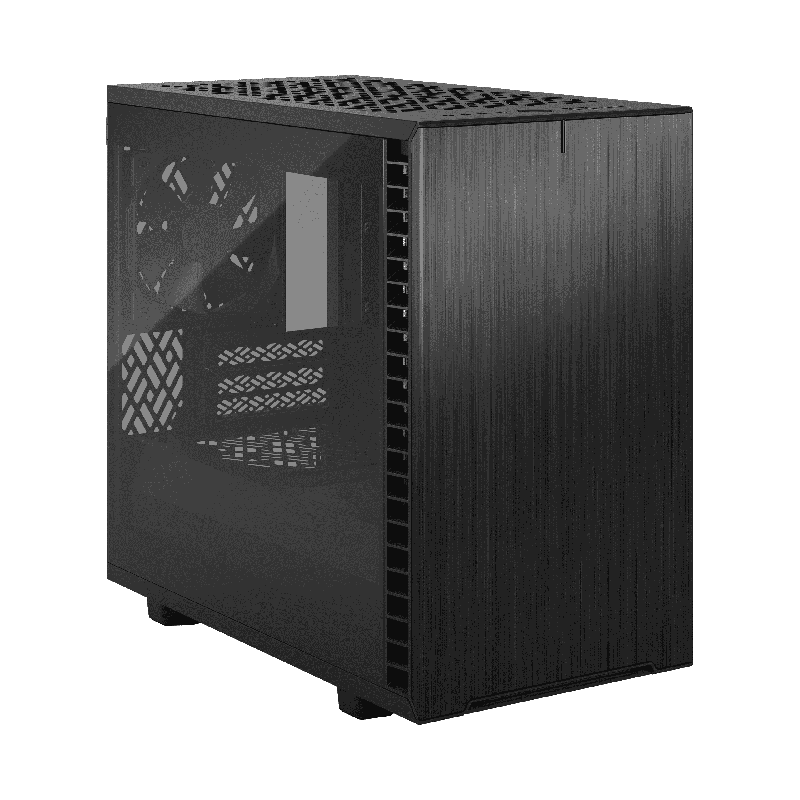

    Left side panel
    Industrial sound-damped steel (Solid) or Tinted Glass panel (TG)

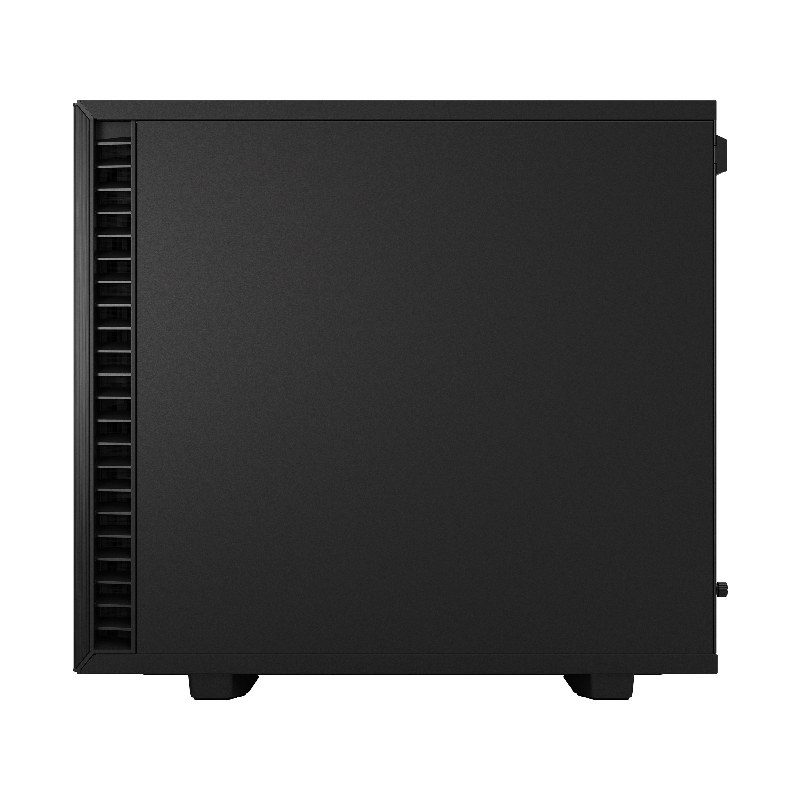

    Right side panel
    Industrial sound-damped steel
    Compatibility
    Motherboard compatibility
    Mini ITX / Mini-DTX
    Power supply type
    ATX
    Front radiator
    120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit)
    Top radiator
    N/A
    Rear radiator
    120 mm
    Bottom radiator
    N/A
    PSU max length
    165 mm recommended (200 mm without HDD-tray and modular air duct)
    GPU max length
    331 mm, 306 mm with front fan
    GPU max thickness
    57 mm / 2.8 slot
    CPU cooler max height
    167 mm
    Dimensions
    Case dimensions (LxWxH)
    399 x 205 x 361 mm
    Case dimensions w/o feet/protrusions/screws
    390 x 205 x 345 mm
    Net weight
    7.1kg (TG) / 7.2kg (solid)
    Package dimensions (LxWxH)
    417 x 277 x 471 mm
    Gross weight
    8.5kg (TG) / 8.6 (solid)
    Other
    Package contents

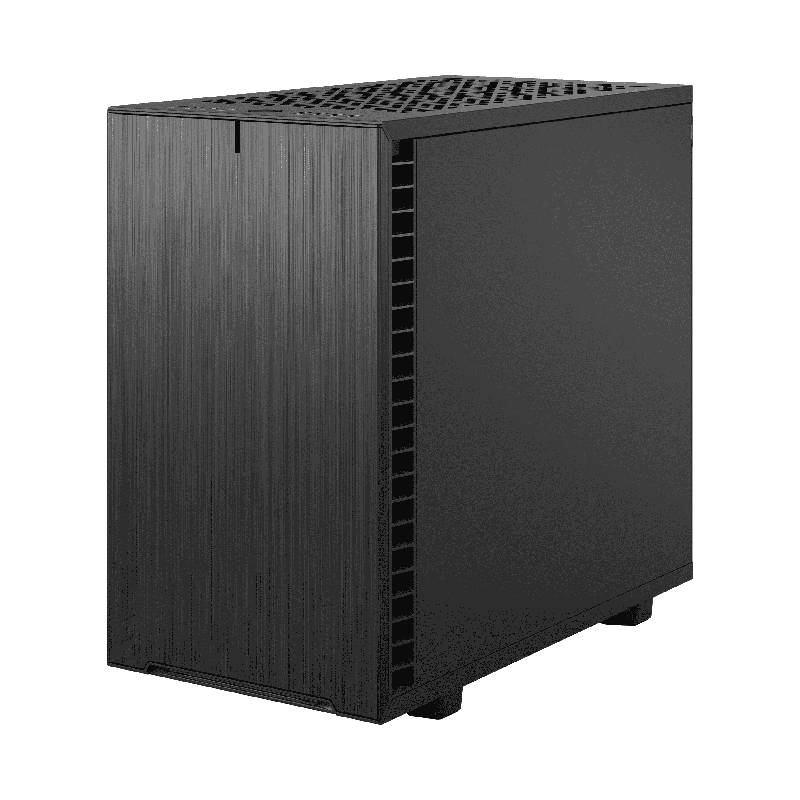

    Define 7 Nano computer case, User manual, Accessory box, Ventilated top panel
    SKU
    Black Solid: FD-C-DEF7N-01, Black TG Light Tint: FD-C-DEF7N-02
    EAN
    Black Solid: 7340172702832, Black TG Light Tint: 7340172702849
    UPC
    Black Solid: 843276102838, Black TG Light Tint: 843276102845
    JAN
    Black Solid: 4537694282314, Black TG Light Tint: 4537694282321
    Warranty
    2 Years
